ZP Series Horizontal Foam Ah Centrifugal Slurry Pump

  • ZP Series Horizontal Foam Ah Centrifugal Slurry Pump
  • ZP Series Horizontal Foam Ah Centrifugal Slurry Pump
  • ZP Series Horizontal Foam Ah Centrifugal Slurry Pump
  • ZP Series Horizontal Foam Ah Centrifugal Slurry Pump

ZP Series Horizontal Foam Ah Centrifugal Slurry Pump

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 60 Days
    Packaging: Wooden case or Frame steel Case
    Productivity: 1100000 sets/year
    Brand: GAOFENG
    Transportation: Ocean,Land,Air
    Place of Origin: Zigong,Sichuan,China
    Supply Ability: 110000 sets/month
    Certificate: ISO9001
    HS Code: 8413709990
    Port: Shanghai,Guangxi,Chengdu

Basic Info

Model No.: 150 ZP-50

Product Description

Heavy Duty Slurry Pump

Anti-Wearing dregs liquid Pump Brief introduction:

ZP series is a newly developed foam slurry pump of unique design for impeller and blades. With the enlarged pump inlet,ZP series foam slurry pump is able to easily manage slurries of heavy foam and high viscosity,as well as low NPSHr fluids. It is suitable for tough floating foam applications and heavy duty foam conveying. A normal ZZ slurry pump can be changed to ZP foam slurry pump only by installing an open impeller for foam slurry,a chambering guard plate and a new type front casing. It is very useful as Slurry Pump For Coal Well

Centrifugal Slurry Pump Parameters:
  1. Flow rate:Q=10~5000(m³/h)
  2. Total head:H=20~120 (m)
  3. Speed:n=490~2900rpm
  4. S.g.:γ ≤1.5
  5. Temperature:T=0~120ºC
  6. Pump diameter:50~450mm
Pumps for coal Industry Features:
  1. Optimized solid and liquid hydraulic model design of high efficiency and energy-saving.
  2. Thickened wetted parts design to improve the anti-abrasive ability and prolong pump life.
  3. Heavy duty shaft design,with better performance in strength.
  4. Reasonable bearing configuration and fully lubricated design ensures the long time and continuous operation.
  5. Suitable to pump corrosive or abrasive slurries contains solids,the mixture density of solids and liquid can be up to 60%.
  6. Various sealing types to meet different requirements.
  7. According to the requirements of clients,it can work in series.
ZP Series Horizontal Foam Ah Centrifugal Slurry Pump Structure:
  1. Axial split bracket and double layer casing structure.
  2. Outer casing is vertical split structure;pump outlet is able to be set on 8 different direction at 45° interval.
  3. Horizontal installation of big loading capacity.
  4. The jacket and guard plate as the lining,pump casing and pump cover is the frame.
  5. Shaft sealings: dynamic seal,packing seal and mechanical seal.
  6. Transmission: Direct coupled,V-belt drive,variable frequency drive,hydraulic coupling.

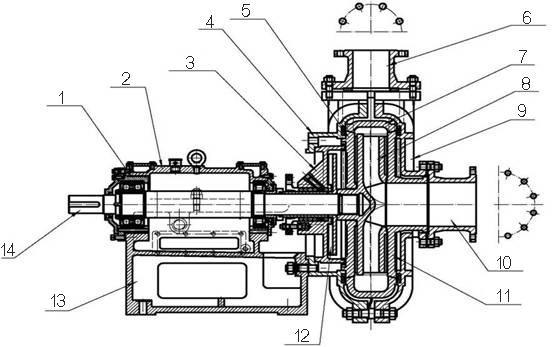

Structure drawing is as below
Heavy Duty Slurry Pump

1. Bearing box 2. Bracket cover 3. Vice impeller chamber 4. Pump casing 5. Back guard board 6. Outlet pipe
7. Jacket 8. Impeller 9. Pump cover 10. Inlet pipe 11. Front guard board 12. Vice impeller 13. Bracket 14. Shaft

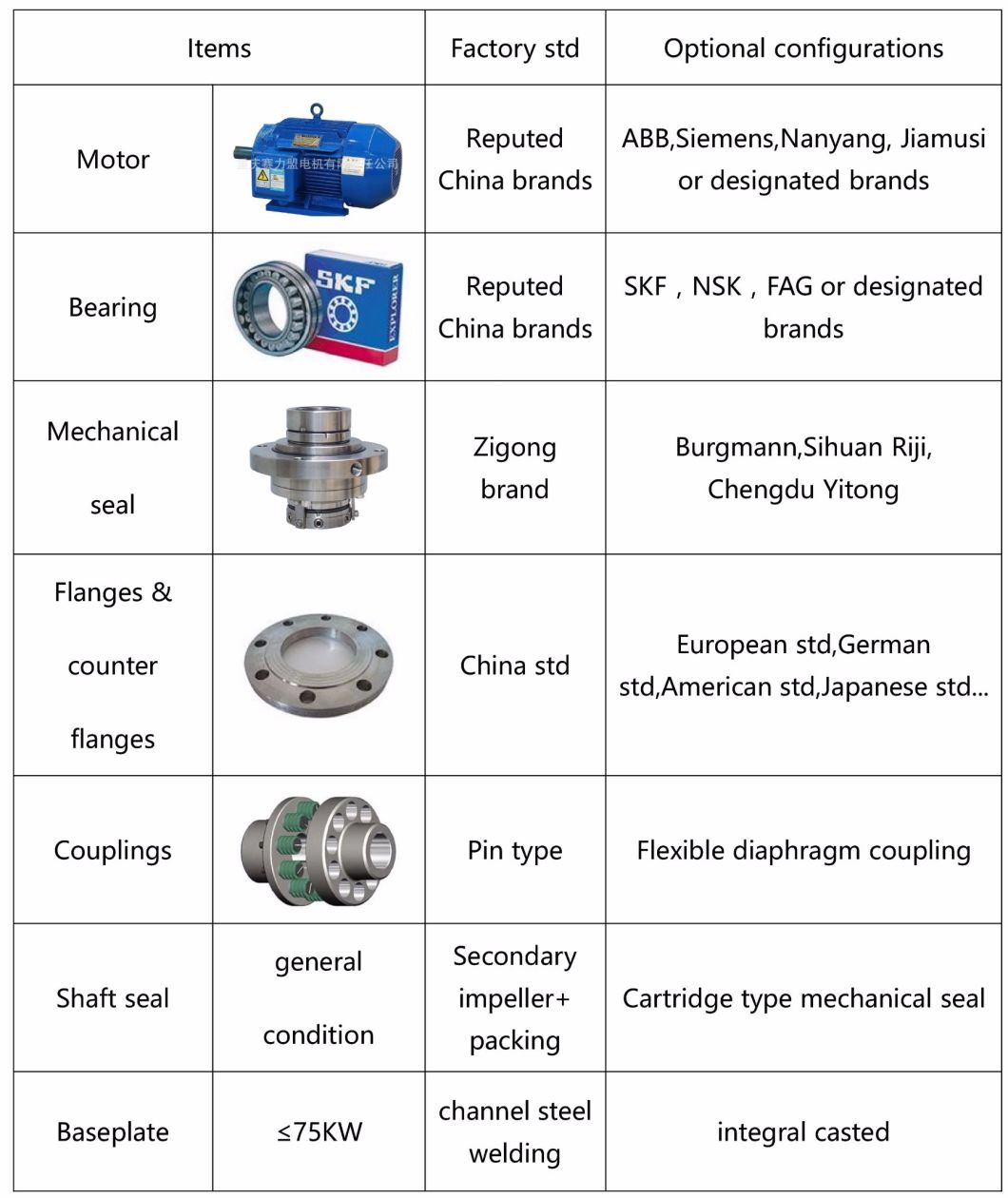

The same Configuration as Low Pressure Slurry Pump:

Centrifugal Slurry Pump

Different Application as Horizontal Waste Water Pump:
  1. Mineral separation and tailing slurry conveying.
  2. Slurry conveying during the producing process of aluminum oxide.
  3. Conveying sewage contains solids in industries of thermal power,cement,steel,non-ferrous metal...
  4. Sewage and slurry conveying of other industries.

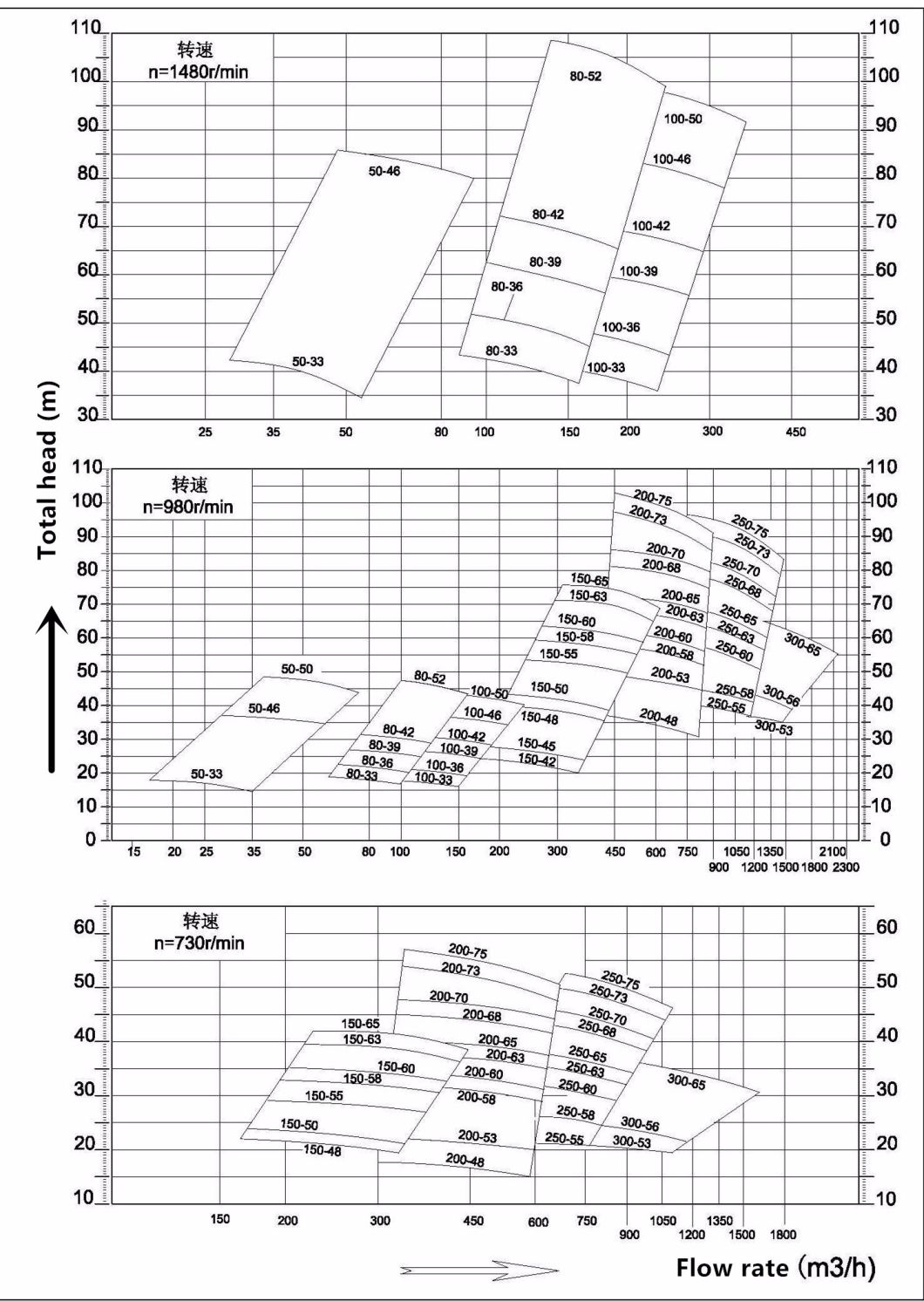

Performance:
Anti-Wearing Dregs Liquid Pump
