4 AF-RV Mining Flotation Vertical Froth Pump

  • 4 AF-RV Mining Flotation Vertical Froth Pump
  • 4 AF-RV Mining Flotation Vertical Froth Pump
  • 4 AF-RV Mining Flotation Vertical Froth Pump
  • 4 AF-RV Mining Flotation Vertical Froth Pump

4 AF-RV Mining Flotation Vertical Froth Pump

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Export wood cases
    Productivity: 500 sets / month
    Brand: Naipu
    Transportation: Ocean,Land,Air
    Place of Origin: Shijiazhuang, China
    Supply Ability: 500 sets / month
    Certificate: CE, ISO9001
    HS Code: 8413910000
    Port: Tianjin,Qingdao,Shanghai

Basic Info

Model No.: 4 AF-RV

Product Description

4 AF-RV Mining Flotation Vertical Froth Pump

Froth Slurry Pump Wear/ Erosion Resistant Material

4 AF - RV Froth slurry pump various requirement for materials in the market, Naipu offering wet end part material as following. Metal A05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, R55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.
AF Vertical Froth Pumps, China AF Vertical Froth Pumps, Vertical Froth Pump, AF Vertical Froth Pumps Manufacturer, froth pump, vertical pump, vertical froth pump, slurry pump,centrifugal pump, AF Vertical Froth Pump, Vertical Froth slurry pump, AF Vertical Froth slurry Pump, centrifugal froth pump, slurry pumps, centrifugal slurry pumps, China NP-AF Vertical Froth Pumps, Vertical Froth Pump manufacturers, our AF Vertical Froth Pumps are good in quality and competitive in price.
froth pump

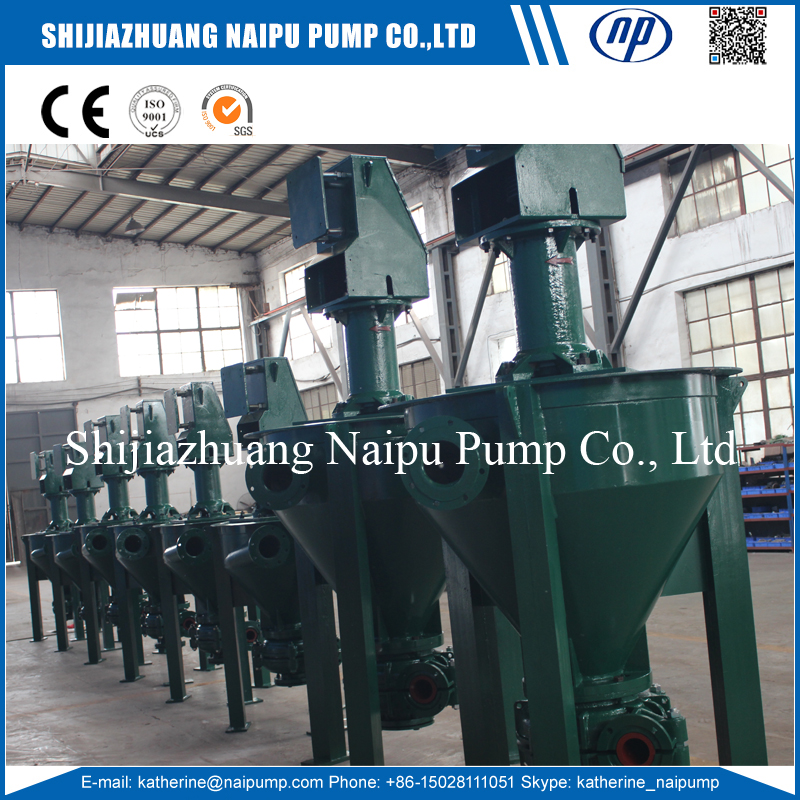

4 inches Vetical Froth Slurry Pump

Vertical Froth Pump are heavy duty construction. 4 AF - RV Froth slurry pump designed for continuous pumping of highly abrasive and corrosive frothy slurries.

The Type `AF` Froth Pump is designed to effectively handle frothy slurries by de-aerating the froth, by an induced vortex effect, before it enters the pump impeller.

froth pumps

NP-AF Vertical Froth Pumps Performance Parameters

Type

Allowable Mating

Max. Power(Kw)

Clear Water Performance

Impeller

Capacity/Q m³/hr

Head/m

Speed/rpm

Max Efficiency/%

Diameter/mm

2AF-QV

15

7.2-33

5--30

800-1800

45%

229

3AF-QV

20

10-104

10--28

700-1500

55%

268

4AF-RV

40

15-130

6--28

500-1050

55%

397

6AF-SV

75

55-330

6--25

350-680

55%

560

AF Slurry Pump PartSWarman froth pump

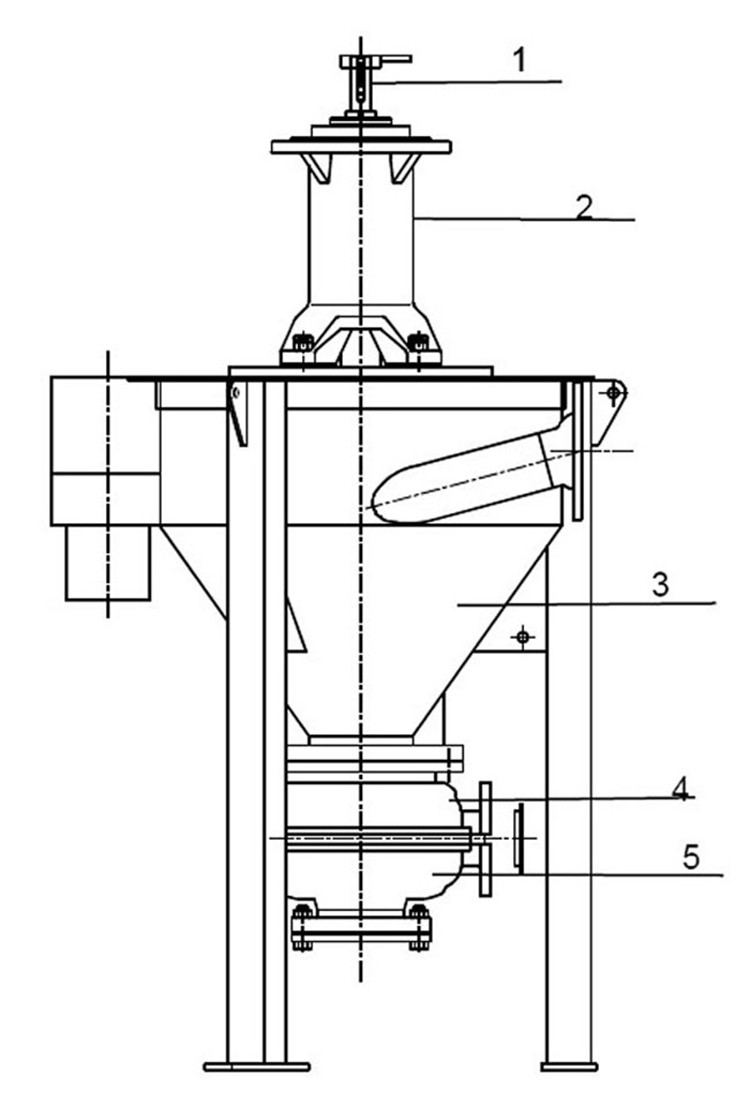

Frothy Slurries Pumps Main Part Number at the Drawing

1.Bearing
2.Bearing Assembly
3.Tank
4.Frame Plate
5.Cover Plate

Froth pump Curve

Froth Pump Part Code No.: E4032G01, E4013G01, DAF4041A05, DAF4127A05, DAF4190A05, RVAF019, RVAF133-3, RVAF073, RV262...

vertical froth pump

Naipu Pump Service

1. OEM service: Produce the pump and spare parts according to client's drawing or sample.

2. Selection service: Help customers select the type, size and operating speed of pumps that will perform at the lowest cost.

3. Using service: Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service.

4. Material service: Interchangeable metal design allow best material choice for any application.

5. After-sale service: Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts.

slurry pump spare parts

Any question please contact Katherine Hou freely.

Warman pump

Shijiazhuang Naipu Pump Co., Ltd.

 Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining. The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities.. Naipu is specialized in the manufacture and sales of Slurry Pump and Pump Parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump. The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries. Meeting customers` technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of china and far to southeast Asia, Noth America, South America,Russia and etc. We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future. We can develop and produce a range of pumps according to different media situation to meet different duty requirment. There are rubber material (R08 , R12, R26, R33, R38, R55, S03,S12,S31,S21,S51,S52 U01 and etc) , wear resistant metal material( A05,A07, A33, A49, A61 and etc) ,Corrosion Resistant stainless steel material (201,304, 316, 316lL and etc ) , fully meet customers` request. We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
